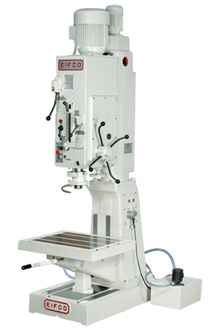

Box Column Drilling MachineBox Column Drilling Machine - BC 540 |
SPECIFICATION: All dimensions are in mm | |
|---|---|---|
 Download the catalog in PDF format |
||
| Drilling capacity in steel ( 60 Kg/mm2) | 50 |  |
| Drilling capacity in cast iron | 60 | |
| Tapping capacity in steel | M 39 | |
| Tapping capacity in cast iron | M 48 | |
| Morse taper in spindle | MT 5 | |
| Spindle traverse on vertical | 280 | |
| Vertical adjustment of spindle head | 280 | |
| Distance between spindle and upright | 355 | |
| Number of spindle speeds | 12 | |
| Range of spindle speeds (rpm) | 32-1400 | |
| Number of power feeds | 9 | |
| Range of feeds (mm/rev) | 0.11 - 1.73 | |
| Power of main motor | 5 / 7.5 HP, 720/1440 rpm, 415 V AC, 3 PH 50 Hz | |
| Power of elevating motor | 1 HP, 1400 rpm, 415 V AC, 3 Ph 50 Hz | |
| Table | ||
| Table with Coolant Gutter |
650 x 780 | |
| Working Surface | 500 x 630 | |
| No. of 'T' slots | 3 | |
| Width of 'T' slots | 18 | |
| Distance between 'T' slots | 160 | |
| Max. Distance between spindle & table | 750 | |
| Base | ||
| Base with Coolant Gutter | 1150 x 630 | |
| Working surface | 490 x 530 | |
| No. of T Slots | 2 | |
| Width of T Slots | 18 | |
| Distance between T slots | 315 | |
| Max. distance between spindle & base | 1200 | |
| Space Occupied ( L x B x H ) | 1600 x 770 x 3000 | |
| Net Weight | 1700 Kg | |
