EIFCO Machine Tools (P) Ltd

Heavy Duty Pillar Drilling Machine

P2/25     |     P2/25/GT

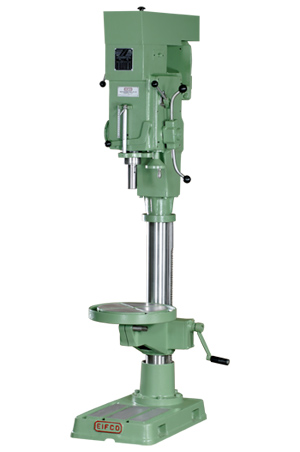

P2/25/GTA

(Auto Feed)

P4/38

(Auto Feed)
  P2/25/GT - PDF Catlaog
Download the catalog in PDF format
P2/25/GTA - PDF Catalog
Download the catalog in PDF format
P4/38 - PDF Catalog
Download the catalog in PDF format
SPECIFICATION: All dimensions are in mm Eifco -Pillar Drilling Machine (Heavy Duty) - Manual Feed Eifco -Pillar Drilling Machine (Heavy Duty) - Auto Feed 25mm Eifco -Pillar Drilling Machine (Heavy Duty) - Auto Feed 38mm
Drilling capacity in steel 25 25 25 38
Tapping capacity - M 16 M 16 M 22
Morse taper in spindle 3 3 3 4
Spindle traverse 140 140 140 178
Pillar diameter 120 120 120 139.7
Distance between centre of spindle and Pillar front 260 260 260 311
Max. distance between spindle and table 610 610 610 555
Max. distance between spindle and base 1080 1080 1080 1000
Table Working surface 335 dia. 335 dia. 335 dia. 370 dia.
Table Working surface (Manual) 470 470 485 465
Base Working surface 318 x 300 318 x 300 318 x 300 370 x 330
No. of spindle speeds 5 10 10 5
Range of spindle speeds (rpm) 400 - 520 - 675 - 880 - 1142 100 - 142 - 210 - 310 -
450 - 600 - 852 - 1260 - 1860 - 2700		 100 - 142 - 210 - 310 -
450 - 600 - 852 - 1260 -
1860 - 2700		 170-250-360-490-680
Feed Hand Hand Auto Feed Auto Feed
No. of Power feeds - - 3 3
Range of power feeds (mm/ rev) - - 0.1 - 0.2 - 0.3 0.095 - 0.190 - 0.285
Power of the spindle drive motor 0.75 kW / 1 HP,
1400 rpm, 415 V AC,
3 Ph 50 Hz		 0.75 kW / 1 HP,
1400 rpm, 415 V AC,
3 Ph 50 Hz		 1.5 kW / 2 HP, 1400 rpm,
415 V AC, 3 Ph 50 Hz		 1.5 kW / 2 HP 1400rpm,
415 V AC, 3 Ph 50 Hz
Space occupied ( L x B x H ) 850 x 600 x 1875 850 x 600 x 1975 850 x 600 x 2080 1100 x 640 x 2200
Net weight 360 Kg 420 Kg 610 Kg 850 Kg
