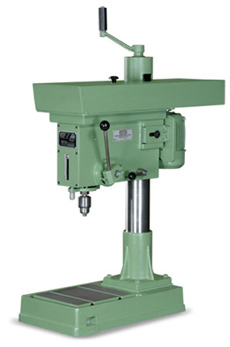

Box Column Drilling Machine High Speed Sensitive Drilling Machine - BDM/RC |
SPECIFICATION: All dimensions are in mm | |
|---|---|---|
 Download the catalog in PDF format |
||
| Drilling capacity in steel | 6 or 10 or 13 |
 |
| Morse taper in spindle | J2-J6 (arbor type) | |
| Spindle traverse | 76 | |
| Vertical adjustment of Spindle head | 200 | |
| Pillar diameter | 100 | |
| Distance between centre of spindle and Column Front | 254 | |
| Distance between centre of spindle and Base Flange | 200 | |
| Min. distance between chuck and base | 90 | |
| Max. distance between chuck and base | 290 | |
| Base Working surface | 255 x 305 | |
| No. of spindle speeds | 6 | |
| Range of spindle speeds (rpm) | 1200 - 1700 - 2400 - 3390 - 4800
- 6790 or 825 - 1335 - 2120 - 3910 - 6615 - 10000 - 14000 |
|
| Feed | Hand | |
| Power of the spindle drive motor | 0.6kW/ 0.8 HP, 2860 rpm, 415 V AC, 3 Phase, 50 Hz |
|
| Space occupied ( L x B x H ) | 1000 x 450 x 850 | |
| Net weight | 190 Kg | |
