Box Column Drilling MachineRadial Drilling Machine |

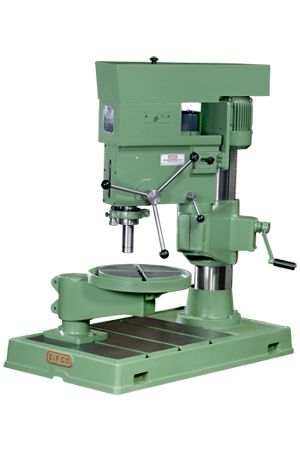

RDH/325 |
RDH/A/325(Auto Feed) |
|---|---|---|
 Download the catalog in PDF format |
 Download the catalog in PDF format |
|
| SPECIFICATION: All dimensions are in mm |  |
 |
| Drilling capacity in steel | 25 | 30 |
| Morse taper in spindle | 3 | 3 |
| Spindle traverse | 140 | 140 |
| Feed | Hand | Auto Feed |
| No. of auto feeds | - | 3 |
| Range of power feeds (mm/rev) | - | 0.1 - 0.2 - 0.3 |
| No. of spindle speeds | 10 | 10 |
| Range of spindle speeds (rpm) | 100 - 142 - 210 - 310 - 450 600 - 852 - 1260 - 1860 - 2700 |
100 - 142 - 210 - 310 - 450 - 600
- 852 - 1260 - 1860 - 2700 |
| Power of the spindle drive motor | 1 HP, 1425 rpm, 415 V AC, 3 Ph 50 Hz | 1.5 kW/ 2HP, 1440 rpm, 415 AC, 3 Ph 50 Hz |
| Drilling Radius Max / Min | 775 / 265 | 770 / 580 |
| Diameter of pillar ( Material: Cast Iron) | 140 | 180 |
| Distance between spindle nose and base Max / Min | 835 / 310 | 1065 / 500 |
| Distance between base and circular table | 315 | 315 |
| Table Working Surface | 330 dia. | 335 dia. |
| Base Working surface | 750 x 350 | 750 x 490 |
| Power of lifting motor | - | 0.75 kW, 1 HP, 2860 rpm, 415 AC, 3 Ph, 50 Hz |
| No. of ‘T’ slots | 3 | 3 |
| Centre distance between ‘T’ Slots | 200 | 200 |
| Space occupied ( L x B x H ) | 1170 x 660 x 1670 | 1350 x 660 x 2080 |
| Net weight | 600 Kg | 850 Kg |
