Bench Drilling Machine

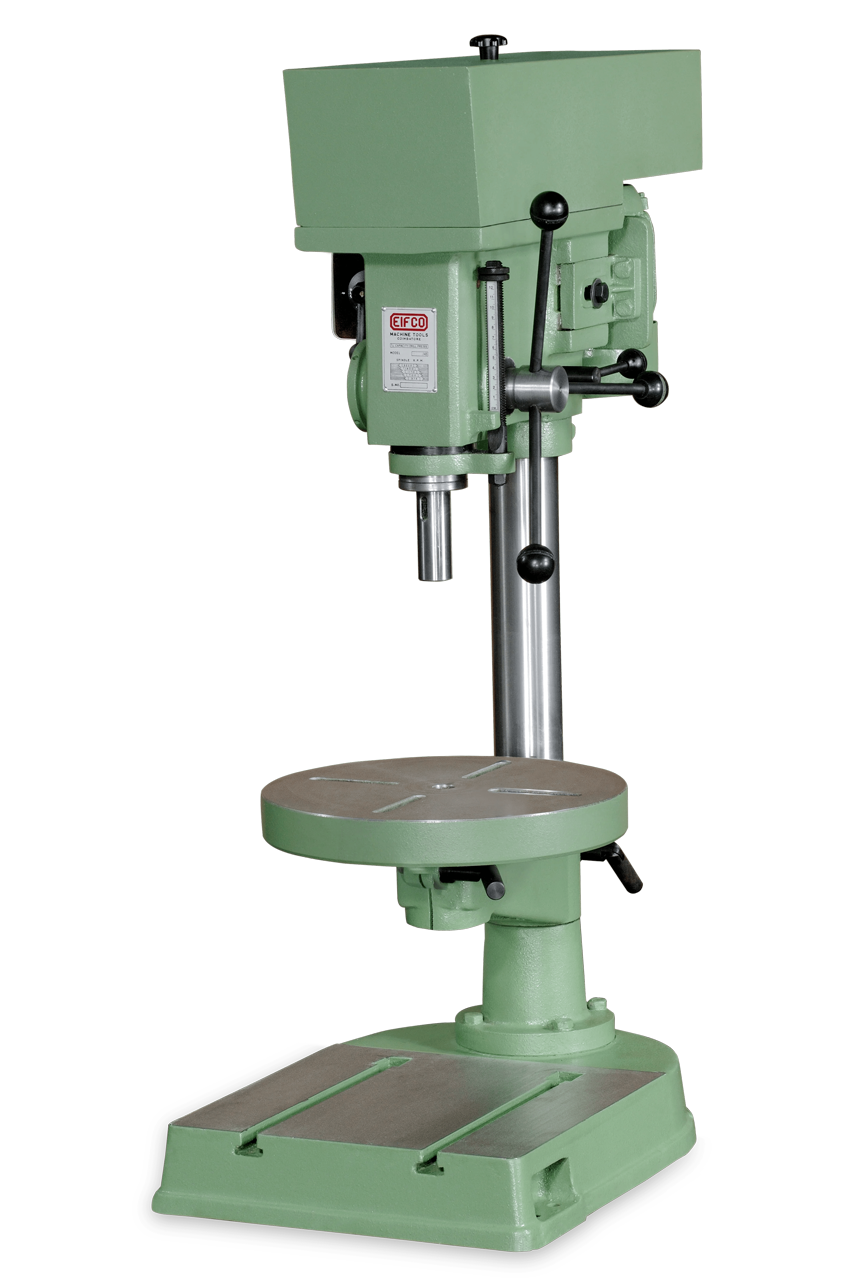

Eifco Bench Drilling machine in 20 mm capacity is available with 4 spindle speeds and supplied complete with 1 HP, 415 volts, 3 phase, 50 Hz, AC electric motor & R/F switch, V belt complete with 1/2" capacity drill chuck and 4" size drill vice.

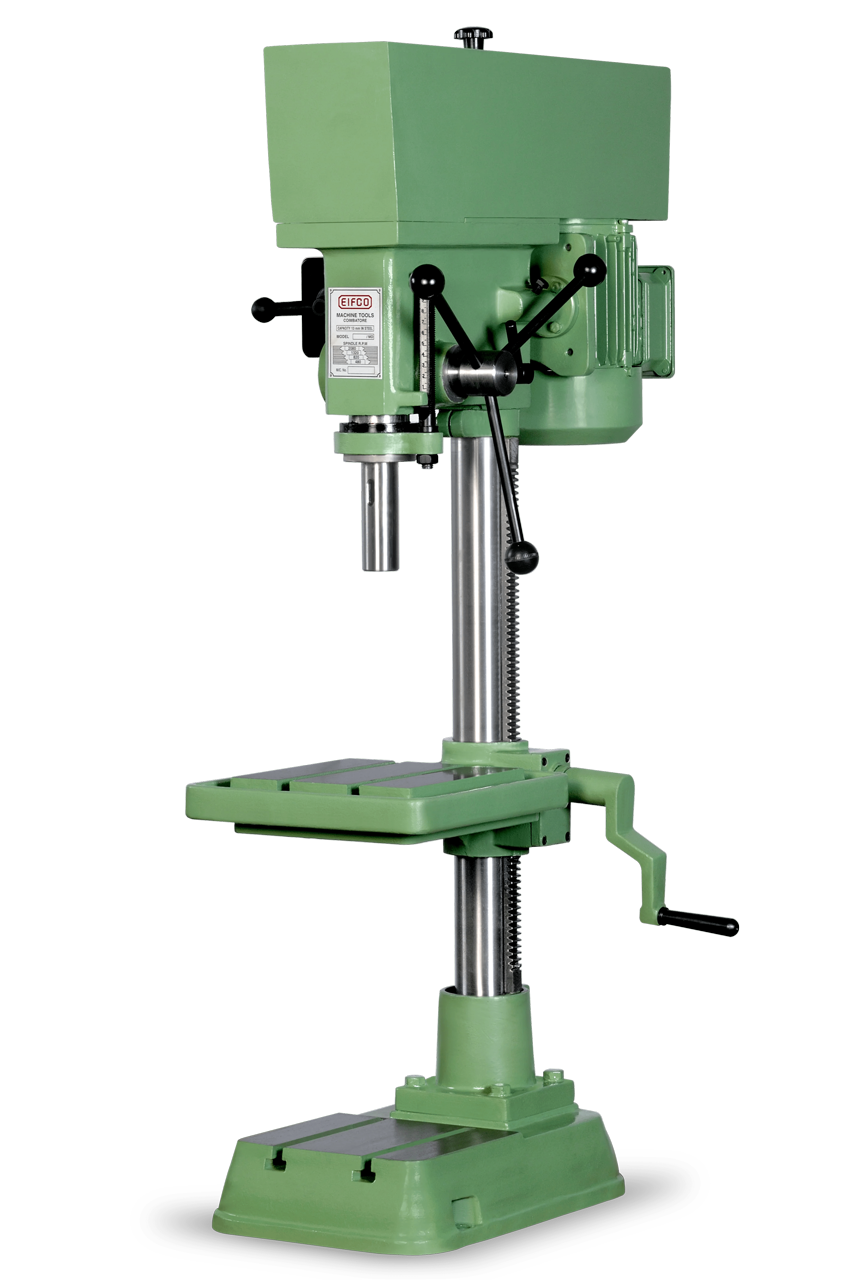

Bench Drilling machine is also available at 13 mm capacity. This machine supplied with complete 0.5 HP 415 volts, 3 phase , 50 Hz, AC electric motor, R/F switch & V belt complete with 1/2 drill chuck with 6" size drill vice.
| Specification | BDM/GT | BDM/HD | BDM/MD | BDM/LD | |
| SPECIFICATION: All dimensions are in mm Pedestal Drilling Machine Models Also Available |
 |
 |
 |
|
| Drilling capacity in steel | 20 | 20 | 13 | 13 |
| Tapping Capacity in steel (optional) | M 12 | - | - | - |
| Morse taper in spindle | 2 | 2 | 2 | J 6 (arbor type) |
| Spindle traverse | 125 | 125 | 100 | 100 |
| Maximum distance between Table and Spindle | 280 | 280 | 280 | 280 |
| Pillar diameter | 76.2 | 76.2 | 57.15 | 57.15 |
| Distance between centre of spindle and column front | 200 | 200 | 149 | 149 |
| Max. distance between spindle and table | 300 | 300 | 300 | 300 |
| Max. distance between spindle and base | 600 | 600 | 500 | 500 |
| Table Working surface | 370 Dia (With Coolant Gutter) |
370 Dia (With Coolant Gutter) |
200 x 200 (With Coolant Gutter) |
200 x 200 (With Coolant Gutter) |
| Base Working surface | 385 x 375 | 385 x 375 | 180 x 210 | 180 x 210 |
| No. of spindle speeds | 10 | 5 | 4 | 4 |
| Range of spindle speeds (rpm) | 100 - 142 - 210-310 - 450 - 600 - 852 - 1260 -1860 - 2700 | 375 -700 - 1170 - 1900 - 3220 | 480 - 820 - 1320 - 2080 | 480 - 720 - 1080 - 1590 |
| Feed | Hand | Hand | Hand | Hand |
| Power of the spindle drive motor | 0.75 kW/ 1 HP, 1400 rpm, 415 V AC, 3 Phase, 50 Hz |
0.75 kW/ 1 HP, 1400 rpm, 415 V AC, 3 Phase, 50 Hz |
0.37kW/ 0.5 HP, 1425 rpm, 415 V AC, 3 Phase, 50 Hz |
0.37kW/ 0.5 HP, 1425 rpm, 415 V AC, 3 Phase, 50 Hz |
| Space occupied ( L x B x H ) | 790 x 440 x 1370 | 790 x 440 x 1370 | 550x 340 x 1100 | 650x 340 x 1100 |
| Net weight of the machine : | 220 Kg | 210 Kg | 105 Kg | 105 Kg |
