Multi Spindle Drill Heads

Eifco multi spindle drilling and tapping heads are used in mechanical industries in order to increase the productivity of machining systems. It consists of four models.

Multi Spindle Drill Heads
SPECIFICATION: All dimensions are in mm

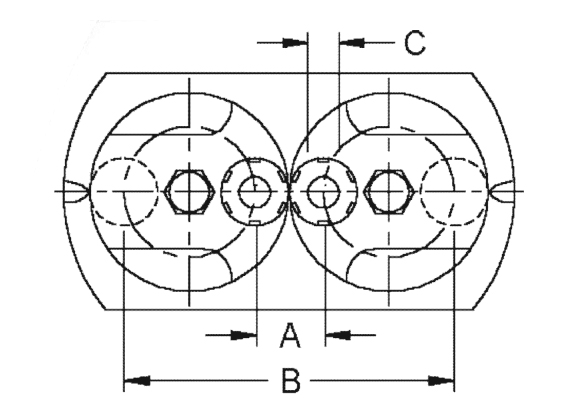

Two Spindle Drill Head


 Two Spindle Drill Head
Model A
(mim c-c)		 B
(max c-c) 		C
(max dia)
in mm in mm in mm
2-5 .532 13.5 2.89 73.5 3/16 5
2-7 .71 18 3.54 90 1/4 7
2-10 .867 22 4.17 106 3/8 10
2-16 1.42 36 6.45 164 5/8 16

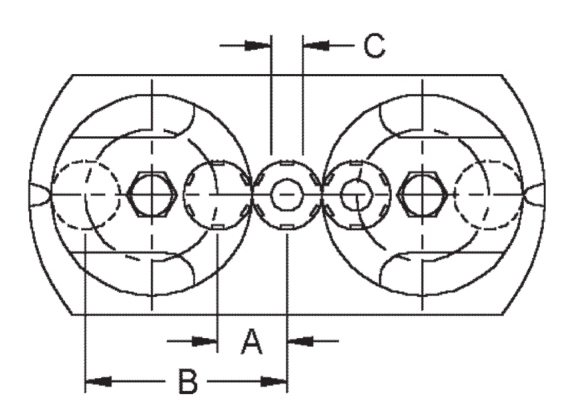

Inline Three Spindle Drill Head

 Pitch Circle Three Spindle Drill Head
Model A
(mim c-c)		 B
(max c-c) 		C
(max dia)
in mm in mm in mm
3L-5 .552 14 1.73 44 3/16 5
3L-7 .788 20 2.20 56 1/4 7
3L-10 .867 22 2.52 64 3/8 10
3L-16 1.42 36 3.93 100 5/8 16

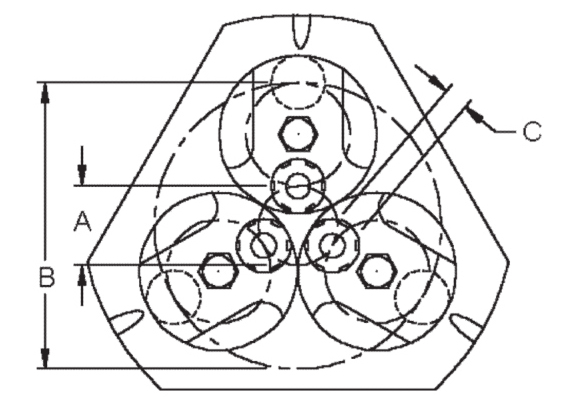

Pitch Circle Three Spindle Drill Head
Model A
(mim c-c)		 B
(max c-c) 		C
(max dia)
in mm in mm in mm
3C-5 .887 22 3.22 82 3/16 5
3C-7 1.10 28 3.93 100 1/4 7
3C-10 1.26 32 4.56 116 3/8 10
3C-16 2.04 52 7.08 180 5/8 16

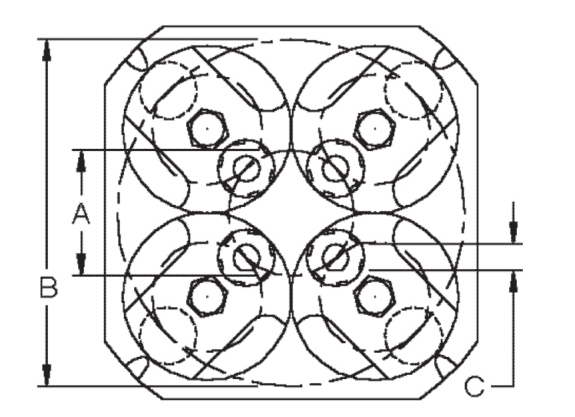

Pitch Circle Four Spindle Drill Head
Model A
(mim c-c)		 B
(max c-c) 		C
(max dia)
in mm in mm in mm
4C-5 1.33 34 3.70 94 3/16 5
4C-7 1.65 42 4.48 114 1/4 7
4C-10 1.89 48 5.19 132 3/8 10
4C-16 3.07 78 8.11 100 5/8 16
